Architect Scale
Architectural drawings are drawn to scale — for example 1/4 inch on paper represents 1 foot in reality. Choose a scale and enter either a real dimension or a measurement taken from the drawing, and the calculator converts it instantly in feet-and-inches and metric. It also finds the scale of an unknown drawing from a known dimension.
- Free to use
- No sign-up
- Runs in your browser
Architect scale calculator
Architect Scale Printables
Printable actual-size architect scale strips (3/32″ to 3″ = 1′-0″), a scale conversion chart, a scale drawing worksheet with answers and quarter-inch drafting grid paper.
- Scale strips 1 (PDF)
- Scale strips 2 (PDF)
- Conversion chart (PDF/XLSX)
- Scale worksheet (PDF, DOCX)
- Drafting grid (PDF)
Formats: PDF, XLSX, DOCX. Instant download after payment (link valid 72 hours, up to 5 downloads). AI-assisted: the templates were drafted with AI help and reviewed and laid out before publishing.
$3.00 USD, one-time 5 files · about $0.60 each
- Instant download
- 7-day refund
- Secure checkout by Stripe
7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.
Free sample: Architect Scale Strips 1 (PDF, 64 KB)
Full refund within 7 days — see the refund policy and license.
Free printables
Single sheets you can print right now, no sign-up. The full pack adds every sheet in one download plus the editable files.

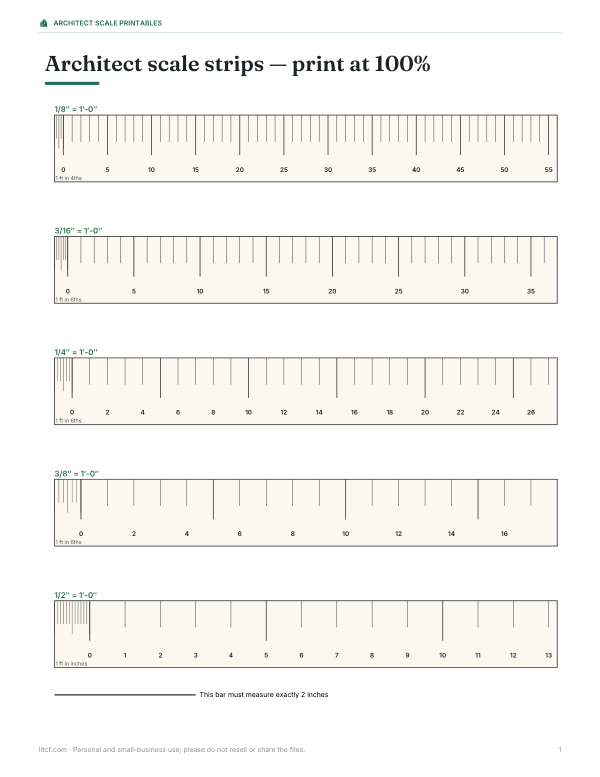

Printable Architect Scale Strips

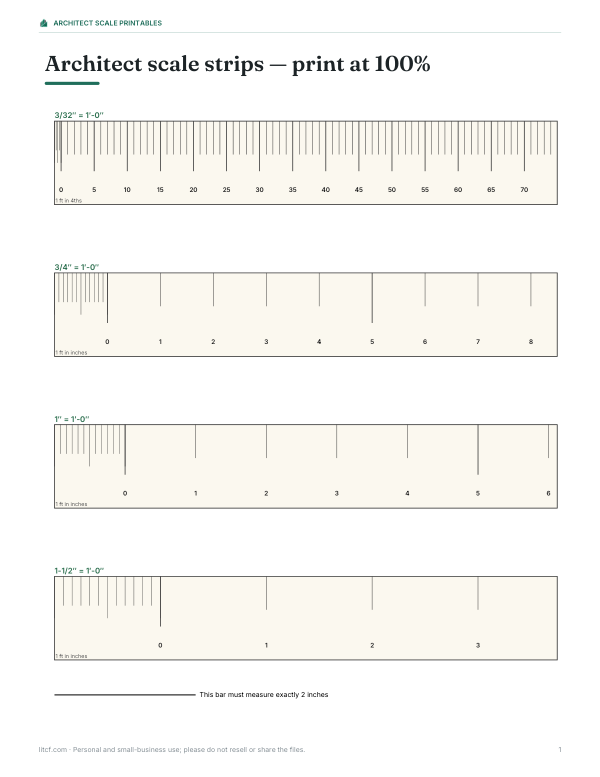

Printable Architect Scale Strips

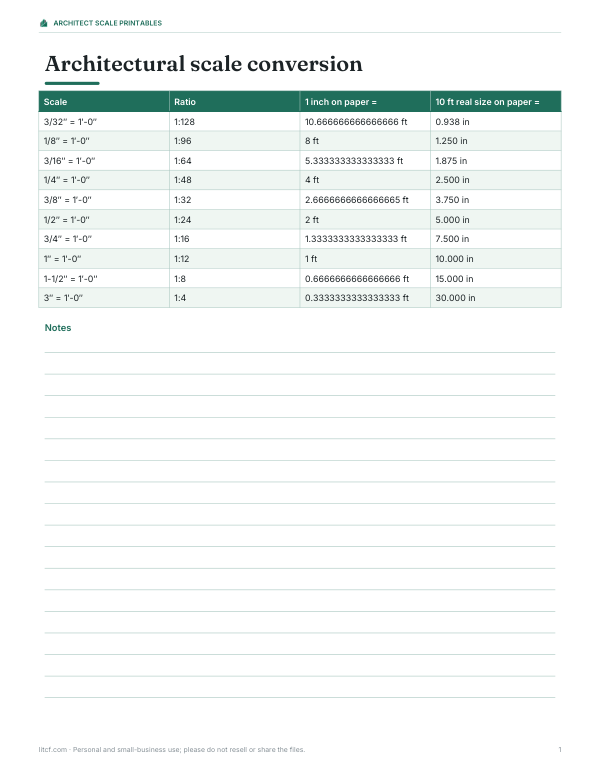

Printable Architect Scale Conversion Chart
Printable Architect Scale Worksheet
Printable 1/4 Inch Architect Scale GridCommon architectural scales
| Scale | Ratio | Typical use |
|---|---|---|
| 1/16″ = 1′-0″ | 1:192 | Site plans, large buildings |
| 3/32″ = 1′-0″ | 1:128 | Large floor plans |
| 1/8″ = 1′-0″ | 1:96 | Floor plans of larger buildings |
| 3/16″ = 1′-0″ | 1:64 | Floor plans |
| 1/4″ = 1′-0″ | 1:48 | Residential floor plans and elevations |
| 3/8″ = 1′-0″ | 1:32 | Enlarged plans |
| 1/2″ = 1′-0″ | 1:24 | Kitchen and bath plans, sections |
| 3/4″ = 1′-0″ | 1:16 | Details |
| 1″ = 1′-0″ | 1:12 | Wall sections |
| 1-1/2″ = 1′-0″ | 1:8 | Construction details |
| 3″ = 1′-0″ | 1:4 | Large-scale details |
The ratio tells you how many real units one drawing unit represents: at 1/4″ = 1′-0″, one inch on paper is four feet (48 inches) in reality.
How to read an architect’s scale ruler
- Find the edge marked with your drawing’s scale — each edge carries two scales, read from opposite ends.
- Place the zero mark at one end of the line you’re measuring.
- Read whole feet on the main scale in the direction away from zero.
- If the line ends between foot marks, slide the ruler so a whole foot mark sits at the end, and read the extra inches in the subdivided section beyond zero.
- Add the feet and inches together.
The subdivided section at each end of a scale represents one foot broken into inches (or fractions of a foot on the smaller scales).
How the calculator works
Every scale can be written as a ratio. For inch-per-foot architectural scales, the ratio is 12 divided by the inches per foot: 1/4″ = 1′ becomes 12 ÷ 0.25 = 48, so the drawing is 1/48 of full size. Converting a real dimension to the drawing divides by the ratio; converting a drawing measurement to real size multiplies by it. To find an unknown scale, the calculator divides a known real dimension by its measured length on the drawing and matches the result to the nearest standard scale.
Worked example
A 12′-6″ wall (150 inches) drawn at 1/4″ = 1′-0″ measures 150 ÷ 48 = 3.125 inches, or 3 1/8″, on the drawing. Going the other way, a line measuring 3 1/8″ on a 1/4″ plan represents 12′-6″. If a door known to be 3′-0″ wide measures 3/8″ on an unknown drawing, the ratio is 36 ÷ 0.375 = 96 — the drawing is at 1/8″ = 1′-0″.
Architect vs engineer vs metric scales
| Type | Format | Used for |
|---|---|---|
| Architect | fraction of an inch = 1 foot (1/4″ = 1′-0″) | Buildings in the US |
| Engineer (civil) | 1 inch = 10, 20, 30, 40, 50 or 60 feet | Site plans, roads, surveys |
| Metric | ratios such as 1:50, 1:100, 1:200 | Buildings outside the US |
Engineer and metric scales divide into tenths or millimetres, which makes decimal dimensions easy; architect scales divide feet into inches.
Choosing a scale for your own drawing
| Drawing | Suggested scale | Fits on |
|---|---|---|
| Whole house floor plan (40 × 30 ft) | 1/4″ = 1′-0″ | Tabloid 11 × 17 in |
| Single room plan | 1/2″ = 1′-0″ | Letter / A4 |
| Kitchen elevation | 1/2″ or 3/4″ = 1′-0″ | Letter / A4 |
| Garden or site plan (100 × 60 ft) | 1/8″ = 1′-0″ or 1″ = 10′ | Tabloid |
| Joinery or trim detail | 3″ = 1′-0″ or full size | Letter / A4 |
Pick the largest scale that fits the paper with room for dimensions and notes. Always write the scale in the title block and add a graphic scale bar, which stays correct even if the drawing is enlarged or reduced.
Printing drawings to scale
A drawing is only to scale when printed at the size it was designed for. PDFs printed with “Fit to page” shrink the drawing, so measurements taken with a scale ruler will be wrong. Print at 100% (actual size) on the intended paper size, and check against the graphic scale bar or a known dimension before relying on scaled measurements. Written dimensions always take priority over scaled ones.
Using the printable scale strips
The printable pack includes actual-size scale strips for the common architect scales. Print them at 100% on card, check the 2-inch test bar with a ruler, and cut them out — they are handy for quick measurements on printed plans when you don’t have a scale ruler to hand.
Privacy
All calculations run in your browser; nothing is uploaded.
Frequently asked questions
What does 1/4 inch = 1 foot mean?
Each quarter inch on the drawing represents one foot in real life — a 1:48 scale.
How do I convert real dimensions to drawing size?
Divide the real dimension by the scale ratio (48 for 1/4″ = 1′-0″).
What is the most common scale for house plans?
1/4″ = 1′-0″ for floor plans and elevations.
What is 1:100 in feet and inches?
About 1/8″ = 1′-0″ (which is exactly 1:96).
Why do my scaled measurements not match?
The drawing was probably printed at the wrong size — check the scale bar.
What is a graphic scale bar?
A drawn bar marked in feet or metres that stays accurate whatever size the drawing is printed.
Is 1:50 the same as 1/4 inch = 1 foot?
No — 1/4″ = 1′ is 1:48; 1:50 is its closest metric equivalent.
How do I measure a 1/8 inch scale drawing?
Use the 1/8 edge of an architect scale, or measure in inches and multiply by 96 to get real inches.
